Z5-D GLADIATOR

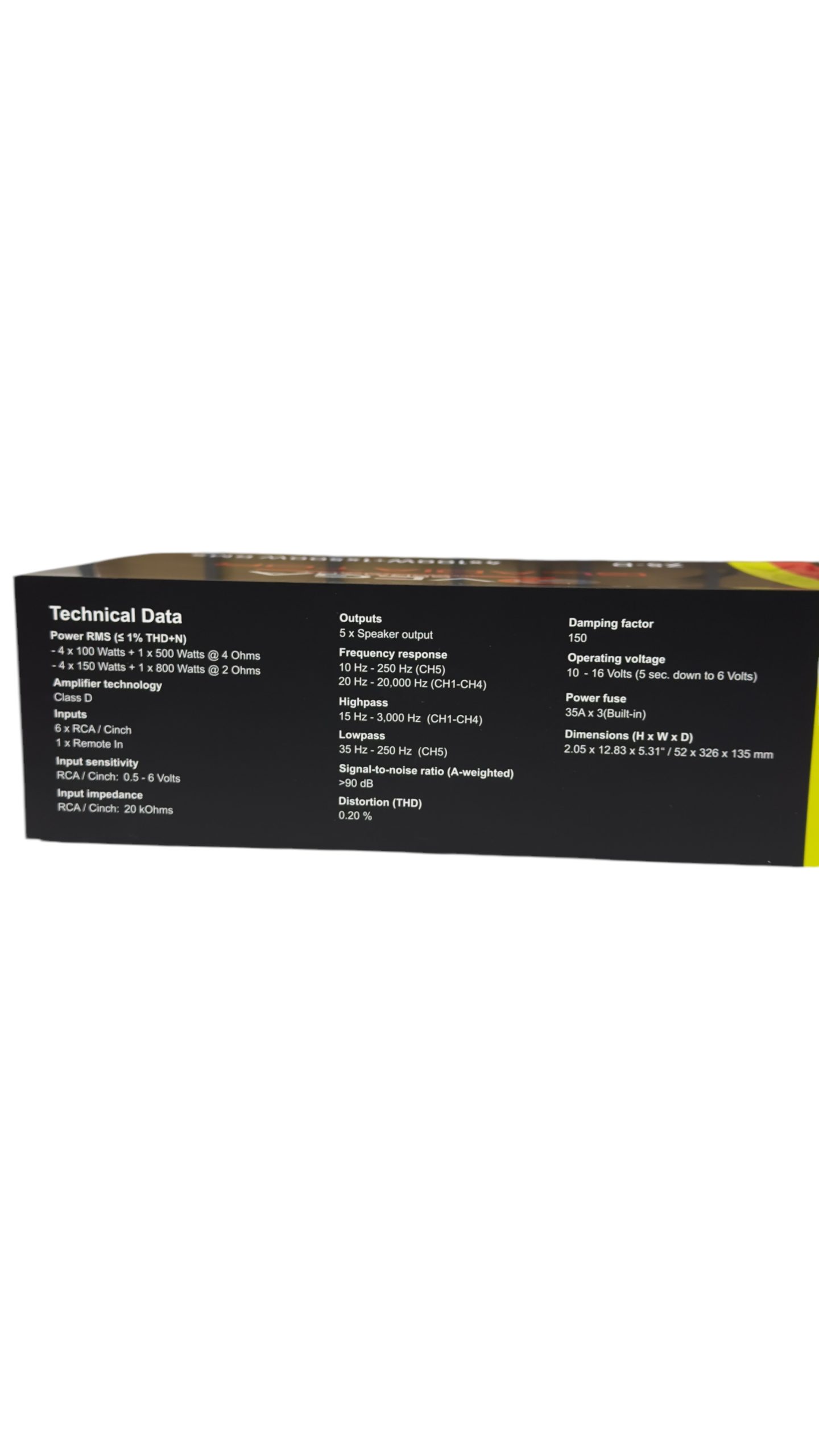

Technical Data

Power RMS (≤ 1% THD+N)
– 4 x 100 Watts + 1 x 500 Watts @ 4 Ohms
– 4 x 150 Watts + 1 x 800 Watts @ 2 Ohms

Amplifier technology
Class D

Inputs
6 x RCA / Cinch
1 x Remote In

Input sensitivity
RCA / Cinch: 0.5 – 6 Volts

Input impedance
RCA / Cinch: 20 kOhms

Outputs
5 x Speaker output

Frequency response
10 Hz – 250 Hz (CH5)
20 Hz – 20,000 Hz (CH1-CH4)

Highpass
15 Hz – 3,000 Hz (CH1-CH4)

Lowpass
35 Hz – 250 Hz (CH5)

Signal-to-noise ratio (A-weighted)
>90 dB

Distortion (THD)
0.20 %

Damping factor
>150

Operating voltage
10 – 16 Volts (5 sec. down to 6 Volts)

Power fuse
35A x 3 (Built-in)

Dimensions (H x W x D)
2.05 x 12.83 x 5.31″ / 52 x 326 x 135 mm
