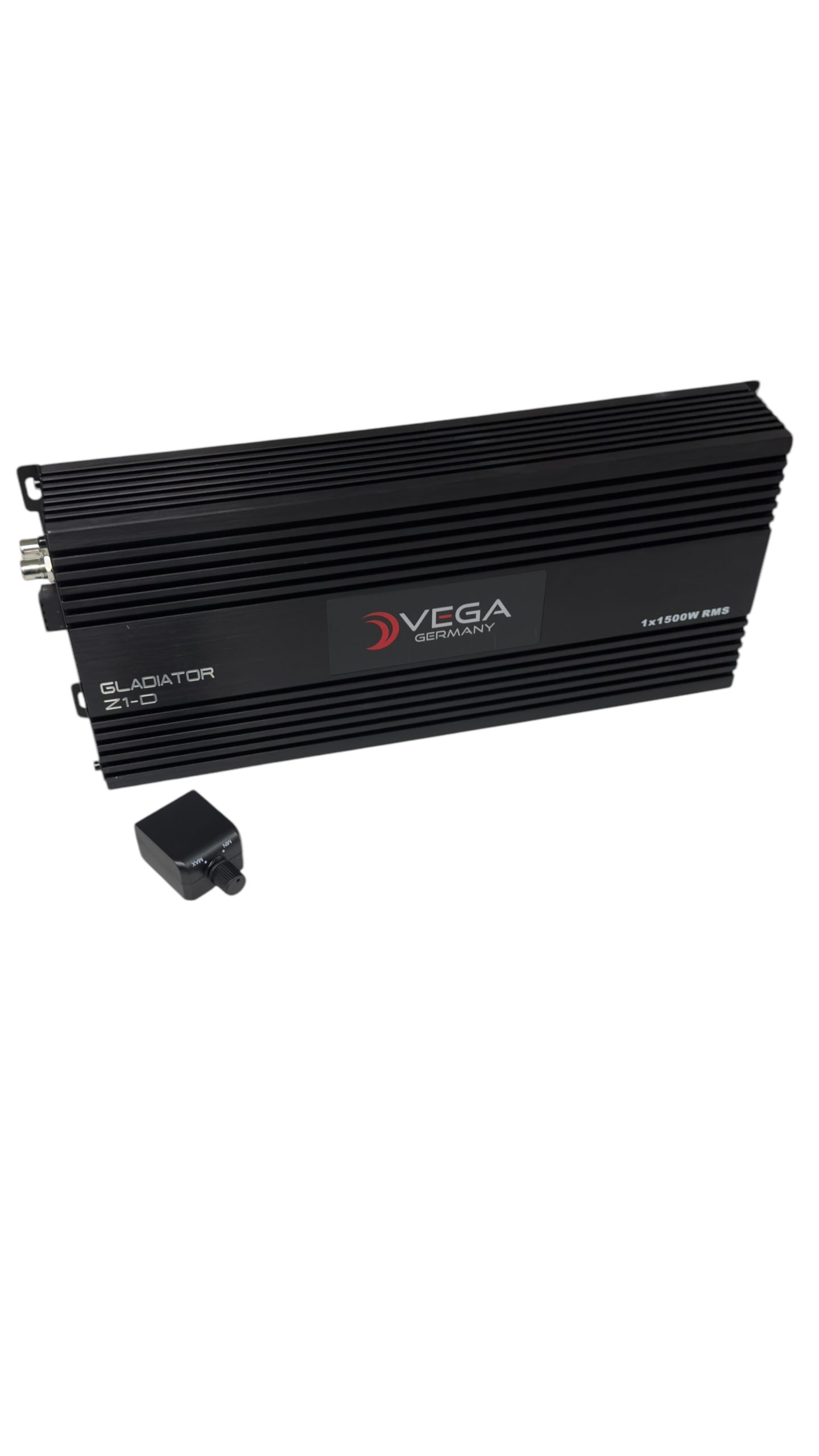

Z1-D GLADIATOR

Technical Data

Power RMS (≤ 1% THD+N)
Normal operation (one amplifier)
– 1 x 900 Watts @ 4 Ohms
– 1 x 1,200 Watts @ 2 Ohms
– 1 x 1,500 Watts @ 1 Ohm

Amplifier technology
Class D

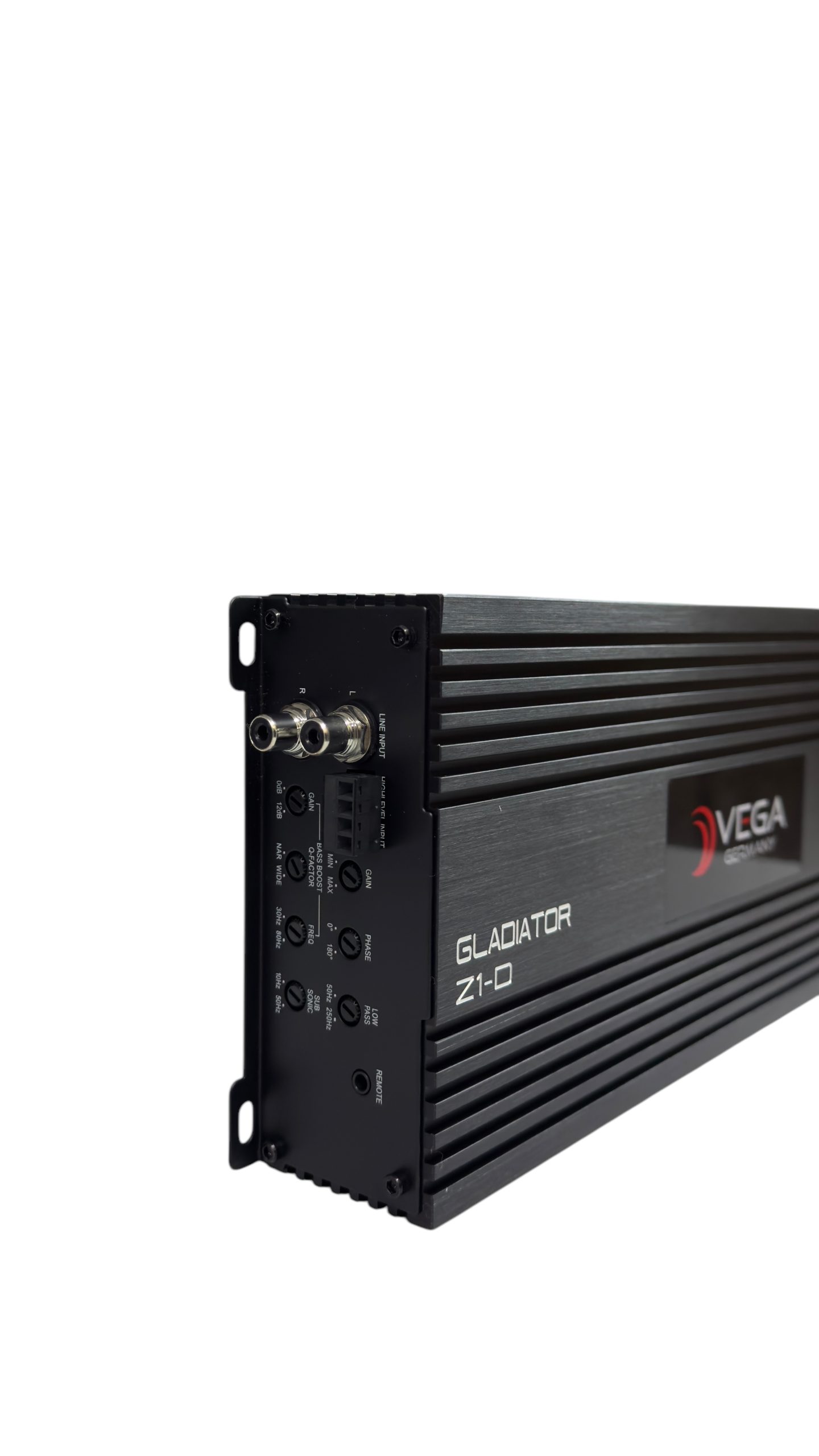

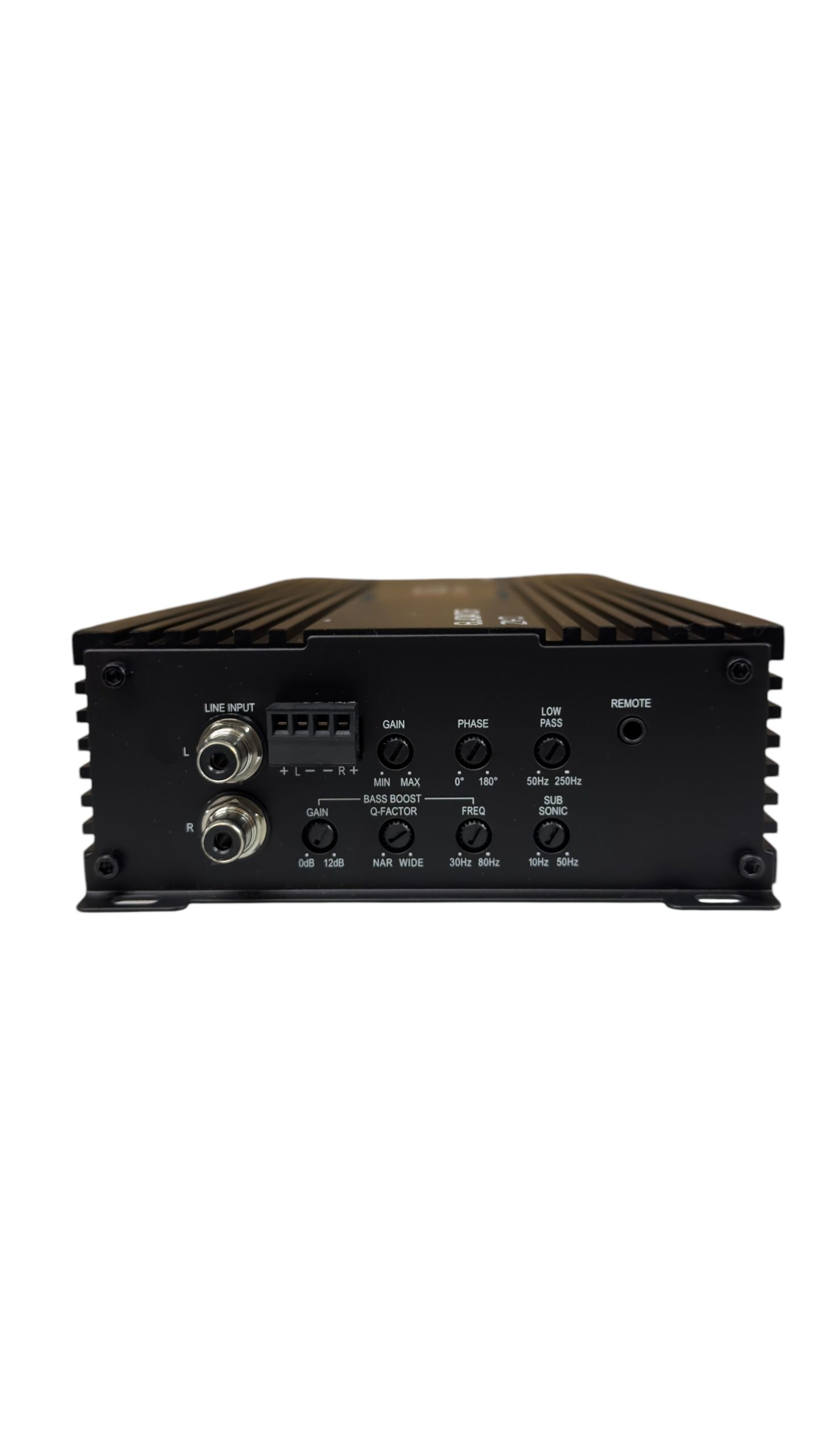

Inputs
– 2 x RCA / Cinch
– 2 x Highlevel speaker input
– 1 x Remote In
– 1 x Remote control input

Input sensitivity
– RCA / Cinch: 0.5 – 6 Volts
– Highlevel: 1.1 – 13 Volts

Input impedance
– RCA / Cinch: 20 kOhms
– Highlevel: 9 – 33 Ohms

Outputs
– 1 x Speaker output

Frequency response
10 Hz – 250 Hz

Bass boost
0 – 12 dB / 30 – 80 Hz

Lowpass
50 Hz – 250 Hz

Bandpass
10 Hz – 250 Hz

Subsonic
10 Hz – 50 Hz

Phase
0° – 180°

Signal-to-noise ratio (A-weighted)
>90 dB

Distortion (THD)
0.20 %

Damping factor
150

Operating voltage
10 – 16 Volts (5 sec. down to 6 Volts)

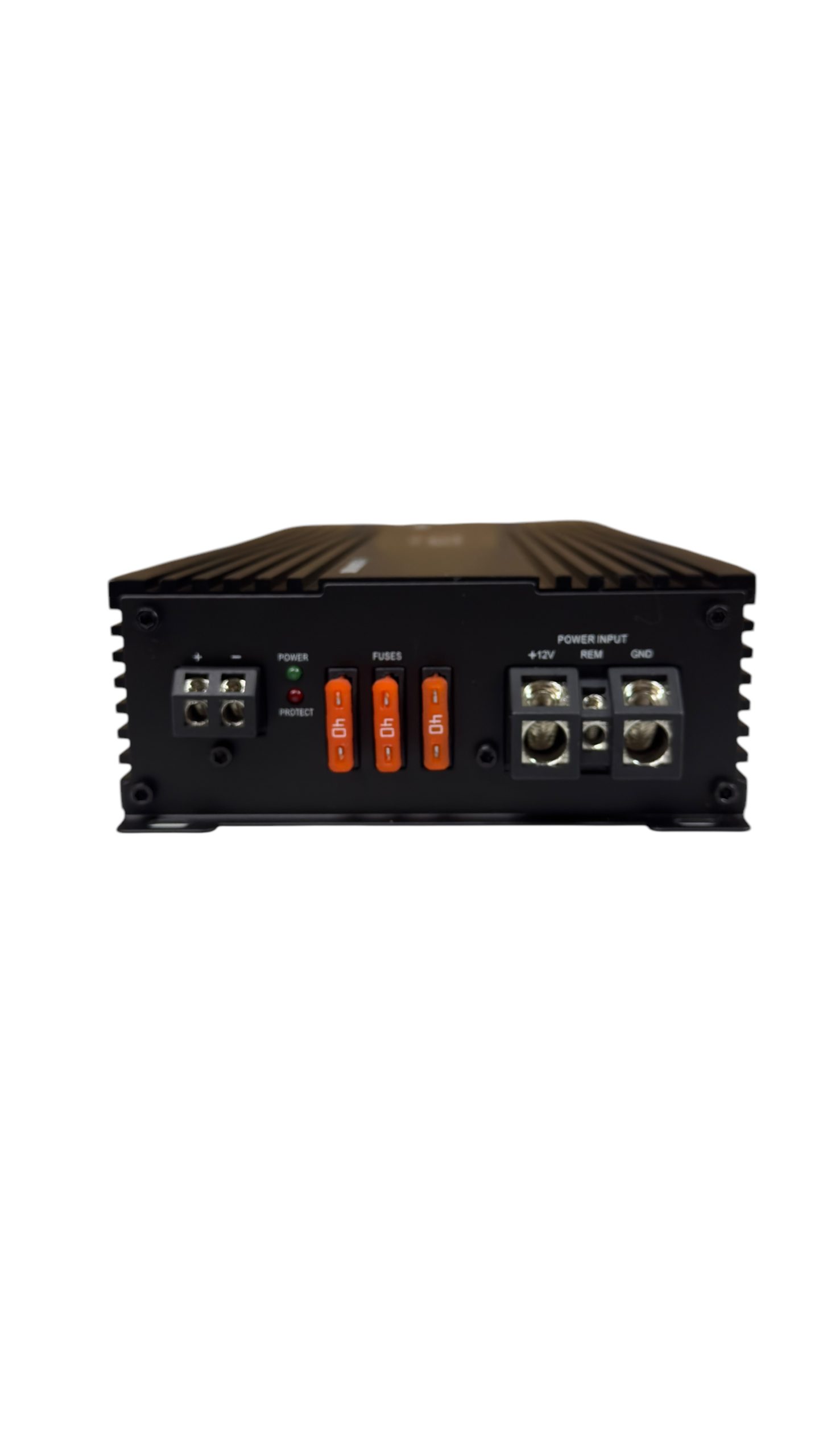

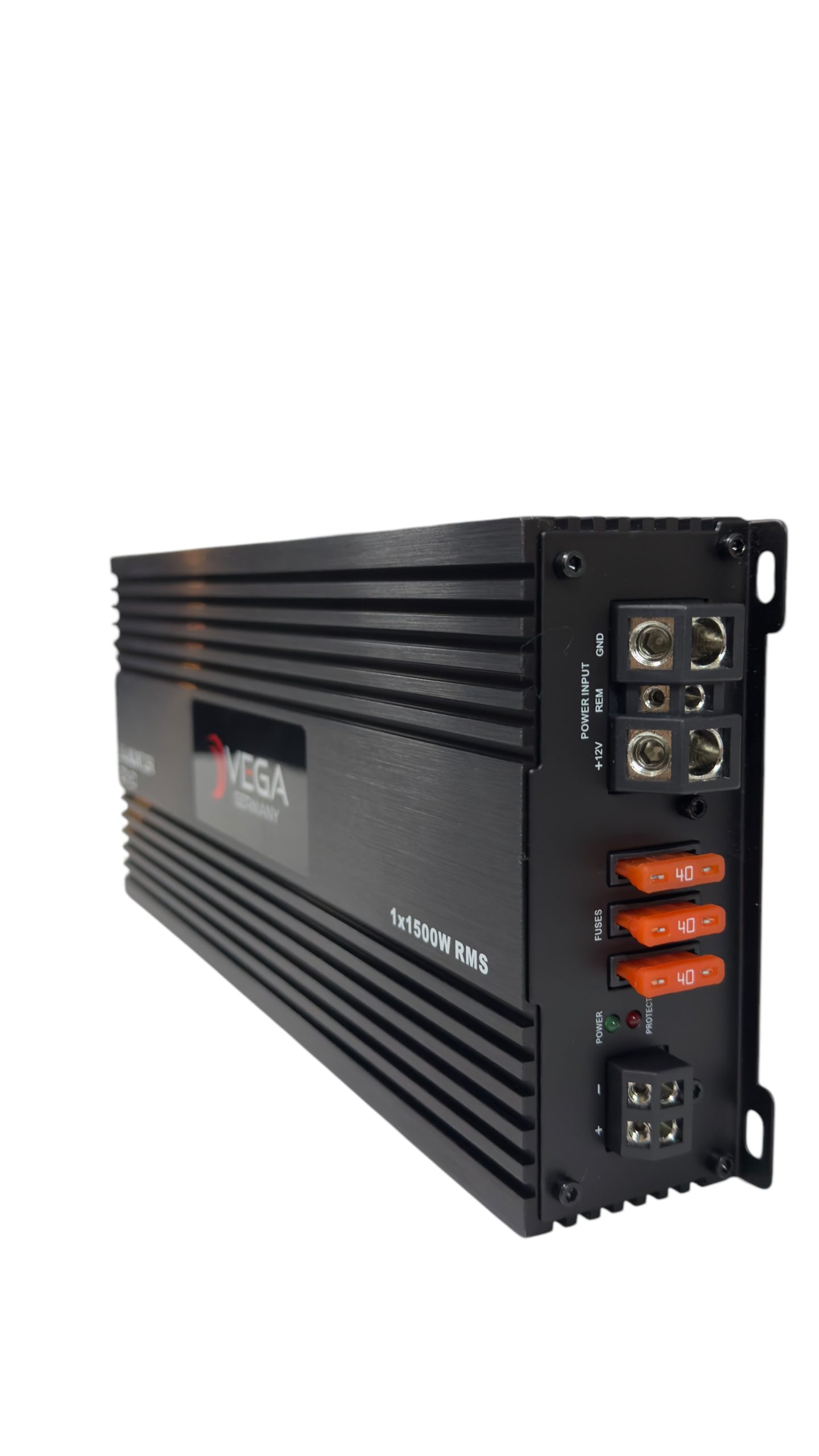

Power fuse
40A x 3

Dimensions (H x W x D)
2.05 x 12.83 x 5.31″ / 52 x 326 x 135 mm
